Extract and Flatten Nested JSON Fields in Logs

Overview

Logs often contain deeply nested JSON objects, making it difficult to filter, query, or analyze specific fields. In such cases, you may need to flatten the structure by extracting key values and promoting them to higher-level attributes.

In this guide, we will extract the image_name attribute, which is nested inside a JSON string within the log’s body field, and promote it to the top-level attributes section.

Example Log

We’ll use the following log as an example:

{
  "body": "{ \\\"metadata\\\": { \\\"container\\\": { \\\"group_id\\\": \\\"abc123\\\", \\\"group_name\\\": \\\"backend-service\\\", \\\"image_name\\\": \\\"backend:v2\\\" } }, \\\"message\\\": \\\"Request timed out\\\" }",
  "id": "2wiZ6440Mtn161jkvjgLyAzDIeU",
  "timestamp": "2025-05-06T10:09:35.693845Z",
  "attributes": {
    "log.file.name": "app.log"
  }
}

Desired Outcome

We want to transform the log into the following structure:

{
  "body": "{ \"metadata\": { \"container\": { \"group_id\": \"abc123\", \"group_name\": \"backend-service\", \"image_name\": \"backend:v2\" } }, \"message\": \"Request timed out\" }",
  "id": "2wiawVsz48SHom7AJst7GkXjJBb",
  "timestamp": 1746527086483,
  "attributes": {
    "container": "{\"group_id\":\"abc123\",\"group_name\":\"backend-service\",\"image_name\":\"backend:v2\"}",
    "group_id": "abc123",
    "group_name": "backend-service",
    "image_name": "backend:v2",
    "log.file.name": "app.log",
    "message": "Request timed out",
    "metadata": "{  \"container\": {    \"group_id\": \"abc123\",    \"group_name\": \"backend-service\",    \"image_name\": \"backend:v2\"  }}"
  }
}

Steps to Extract Nested JSON Fields and Flatten Logs

To transform our example log into the desired format, we will use the following three processors in the SigNoz Logs Pipeline:

JSON Parser – Convert the JSON string in body into structured fields under attributes.
Move Processor – Move the message field from the parsed JSON into body.
Flatten Nested Fields – Extract group_id, group_name, and image_name from metadata.container and move them to top-level attributes.

Let's go through each step in detail.

Step 1. JSON Parser – Convert JSON in `body` to Structured Attributes

The first step is to parse the raw JSON string inside body so we can access its fields directly.

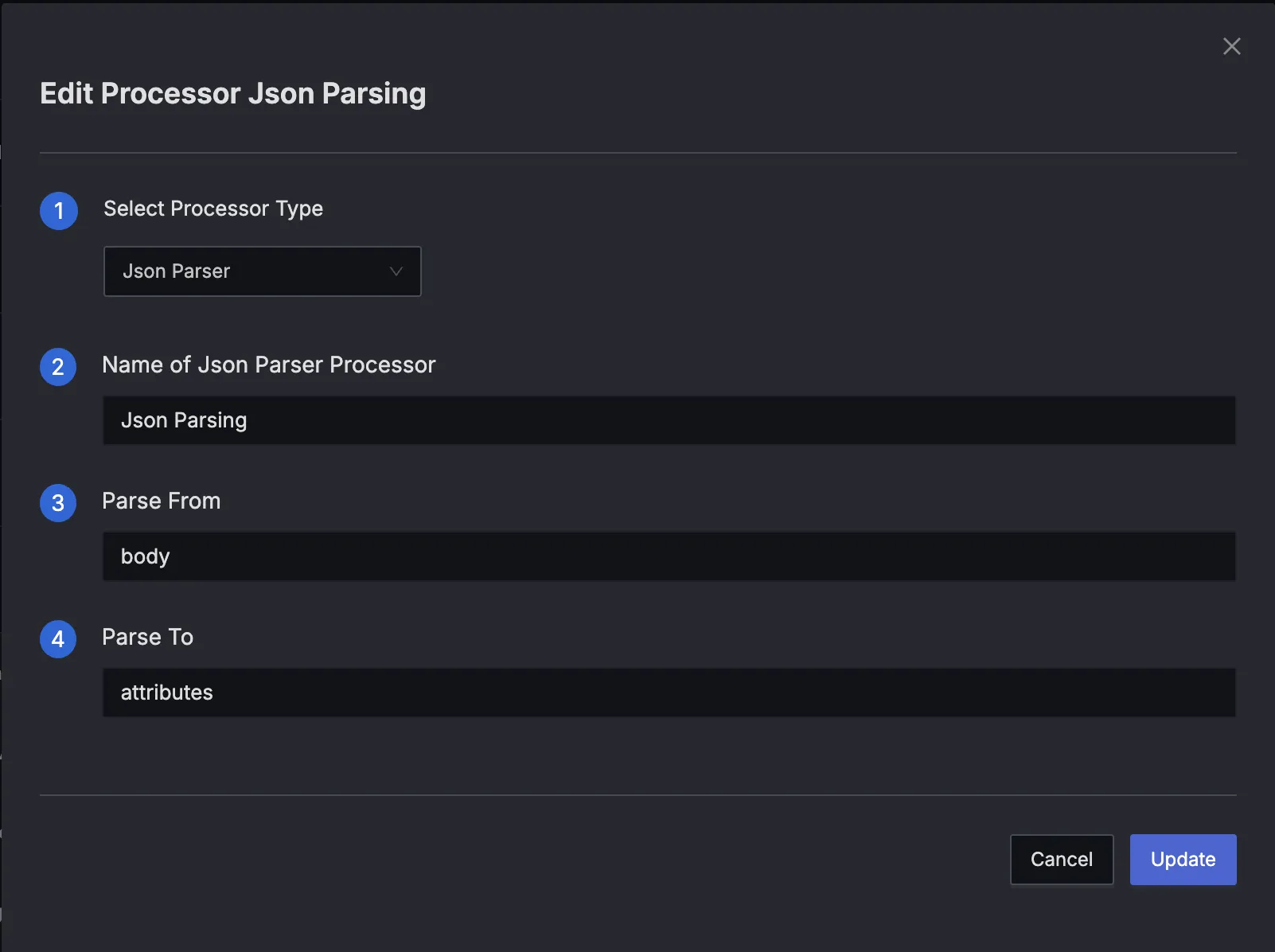

Processor Configuration

- type: json_parser
  name: ParseBodyJson
  parse_from: body
  parse_to: attributes

After Parsing

{
  "body": "{ \"metadata\": { \"container\": { \"group_id\": \"abc123\", \"group_name\": \"backend-service\", \"image_name\": \"backend:v2\" } }, \"message\": \"Request timed out\" }",
  "id": "2wiawVsz48SHom7AJst7GkXjJBb",
  "timestamp": 1746527086483,
  "attributes": {
    "log.file.name": "app.log",
    "message": "Request timed out",
    "metadata": "{\"container\":{\"group_id\":\"abc123\",\"group_name\":\"backend-service\",\"image_name\":\"backend:v2\"}}"
  }
}

Key Observations:

The message field has been successfully extracted from the body JSON and added as an attribute.
The metadata field was not fully parsed into a nested object; instead, it is still a stringified JSON.

Step 2: Extract Image Name Field

This step uses a json_parser to extract group_id, group_name, and image_name directly under attributes from attributes.metadata.container.

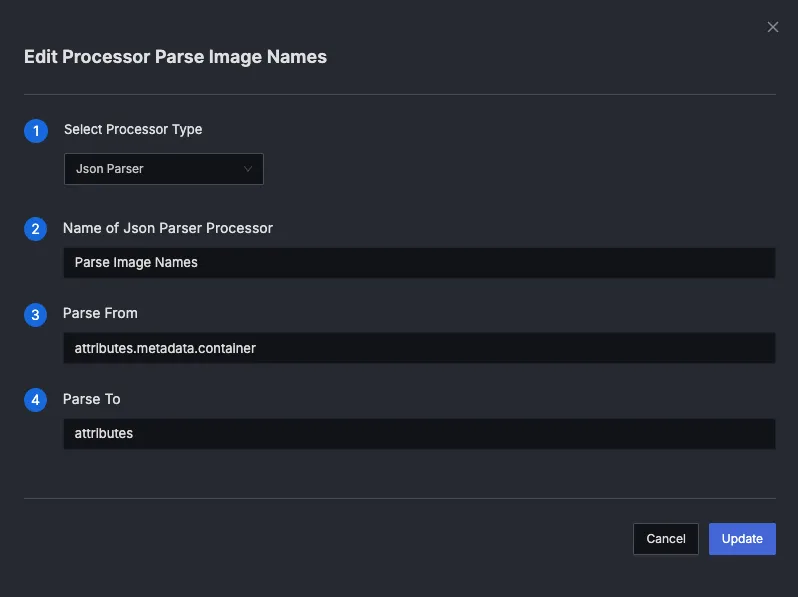

Processor Configuration

- type: json_parser
  name: Parse Image Name
  parse_from: attributes.metadata.container
  parse_to: attributes

Final Output

{
  "body": "{ \"metadata\": { \"container\": { \"group_id\": \"abc123\", \"group_name\": \"backend-service\", \"image_name\": \"backend:v2\" } }, \"message\": \"Request timed out\" }",
  "id": "2wiawVsz48SHom7AJst7GkXjJBb",
  "timestamp": 1746527086483,
  "attributes": {
    "container": "{\"group_id\":\"abc123\",\"group_name\":\"backend-service\",\"image_name\":\"backend:v2\"}",
    "group_id": "abc123",
    "group_name": "backend-service",
    "image_name": "backend:v2",
    "log.file.name": "app.log",
    "message": "Request timed out",
    "metadata": "{  \"container\": {    \"group_id\": \"abc123\",    \"group_name\": \"backend-service\",    \"image_name\": \"backend:v2\"  }}"
  }
}

** Key Observations**

group_id, group_name, and image_name have been flattened and promoted to top-level fields under attributes.
The original attributes.container field remains as a JSON string, but its contents are now accessible individually.

After extracting and flattening nested fields, you may want to remove intermediate fields like metadata and container to reduce noise and log size.

You can use the remove processor to do that.

Remove Metadata

- type: remove
  name: Remove Metadata
  field: attributes.metadata

Remove Container

- type: remove
  name: Remove Container
  field: attributes.container
